Separator with telescopic grates
A separator with telescopic grates is an advanced magnetic separation system designed for quick and effortless cleaning. Thanks to the sliding (telescopic) construction of the magnetic rods, metal contaminants can be removed within seconds — significantly reducing downtime and improving hygiene in your production process. These separators are ideal for applications where ferrous contamination occurs frequently or where strict hygiene standards require regular cleaning.
Product sorting
Brands
Magnetic force on the tube
Breakaway force on the tube
Number of magnetic rods
Version
Temperature resistance of the magnet
Input/output
List of products
Listing controls

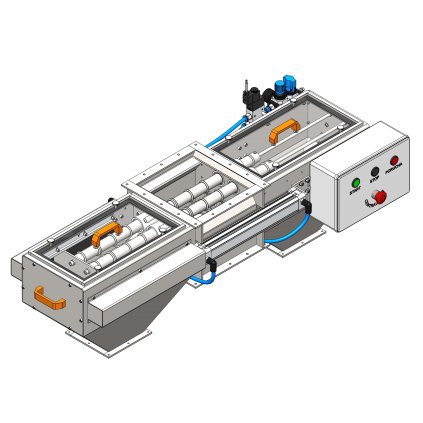

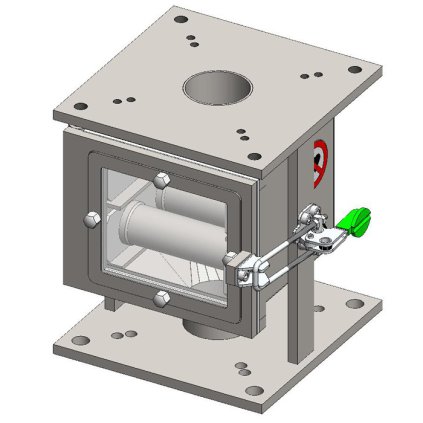

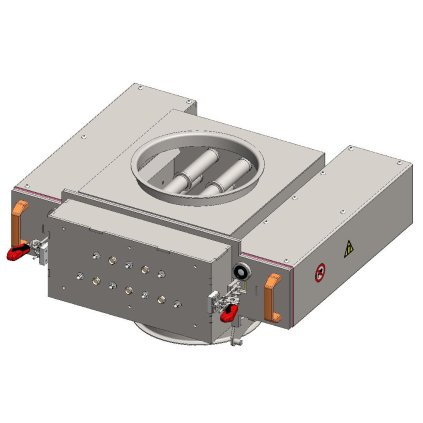

Our extensive range of magnetic separators includes special products for the effective separation of dry mixtures, including pull-out magnetic separators. We offer various types of MSV magnetic separators in ECO, PLASTIC, UP, and STANDARD designs, as well as separators with automatic cleaning in STANDARD, LML, and ECO designs. They contain 3, 4, 5, or 7 magnetic rods with a pull-off force ranging from 34 N to 117 N per tube.
Magnetic separators with pull-out grates are commonly used to separate magnetic impurities from dry, homogeneous mixtures in small and fine fractions with good flow properties that are transported in industrial piping systems. The separated mixtures are poured into the MSV separator by gravity – they are designed for vertical piping. Magnetic separators with pull-out grates are used in industrial sectors – food industry, chemical industry, processing industry (plastics processing, rubber processing, waste recycling).
Key Advantages of Telescopic Grate Separators
Very fast and simple cleaning
Slide-out rods allow operators to clean the separator within seconds, reducing downtime and improving efficiency.
High magnetic performance
Strong neodymium magnets inside the rods capture even fine iron particles, rust, steel fragments and ferromagnetic dust.
Ideal for powders, granules and bulk materials
The design ensures maximum contact between the material and magnetic rods, improving metal removal efficiency.
Durable stainless-steel construction
Resistant to abrasion, corrosion and demanding production environments.
No energy consumption
Permanent magnets work continuously with zero power requirements and no moving mechanical parts.
Custom dimensions available
Telescopic grate separators can be tailored to fit hoppers, chutes, pipelines or processing lines of any size.
