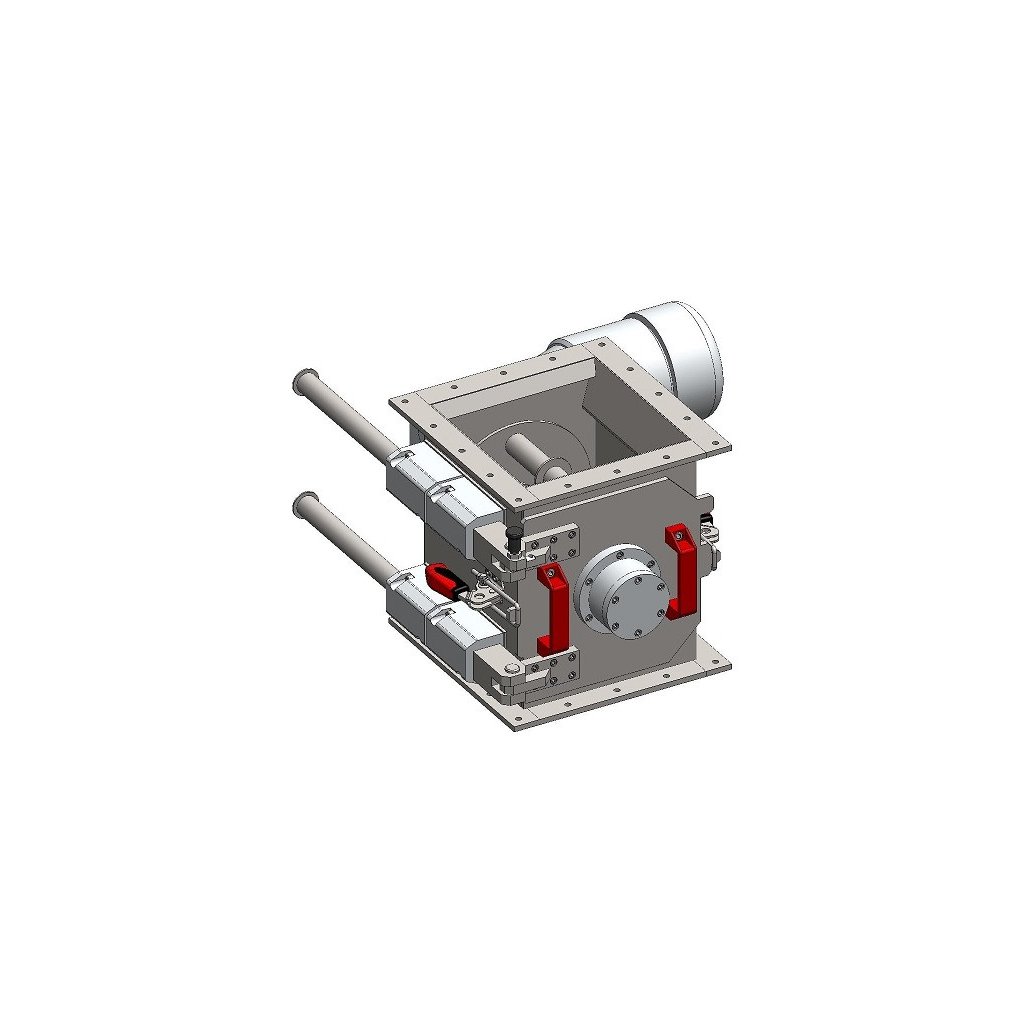

Rotational magnetic separator MSVR 260x260/4 VVM-P-1-80-TP-RL




The reported tear force values for some products were measured under ideal conditions given by the test environment. However, these values may vary depending on the specific type of environment where, for example, operating conditions and subsequent wear may affect the effectiveness of the product. However, measurements have not been made for all products and in such cases are only an estimate or internal auxiliary calculation by the vendor. The values quoted are therefore to be considered as indicative and the Seller declares that they are not a description of the goods in terms of the agreed characteristics in the sales contract on the basis of Article 6(a) of Directive (EU) 2019/771 of the European Parliament and of the Council of 20 May 2019 on certain aspects of contracts for the sale of goods, amending Regulation (EU) 2017/2394 and Directive 2009/22/EC and repealing Directive 1999/44/EC. In order to determine the exact value of the tear force in a specific case, it is necessary to carry out the actual measurement. In case the detected values of the breakaway force are not sufficient for you, as they do not correspond to the stated values, you can take advantage of the guaranteed return option within 30 days under the conditions stated here: https://magsy.shop/goods-returning/ and purchase a stronger magnet. These 30 days are just for testing the goods, after which the seller can refuse the return.
Additional parameters
Category: | Rotational magnetic separators |
---|---|
EAN: | 8595133933810 |
Security protection: | Electric lock (not connected) |
Electrical installation: | Not included, terminated on motor terminal block |
Total weight: | 80 kg |
Weight of the protective shell (tubes): | 4,5 kg |
Magnetic force on the tube: | 7.400 Gs |
Magnetic force at a distance of 1 mm: | 3.900 Gs |
Magnetic force in the distance. 5 mm: | 1.900 Gs |
Material: | Stainless steel DIN 1.4301 / AISI 304 / CSN 17240 |
Materials for separators: | Crystal sugar, Icing sugar, Kaolin, Flour, Plastic granulate, Soot, Spices, Sand, Poppy, Sunflower seeds, Lime, Plastic granules, Cement, Grain, Recycled rubber, Ground paprika, Powder, Pudding, Crushed rubber, Plaster, Rubber |
Engine: | Nord, power 250 W, 35 rpm. |
Breakaway force on the tube: | 100 N |
Number of magnetic rods: | 4 |
Surface finish of the body: | Glass bead blasting |
Magnetic rod diameter: | 32 mm |
STATUS OF PRODUCT: | New |
Temperature resistance of the magnet: | 80 °C |
Seals: | Silicone - also for food industry (ATEST) |

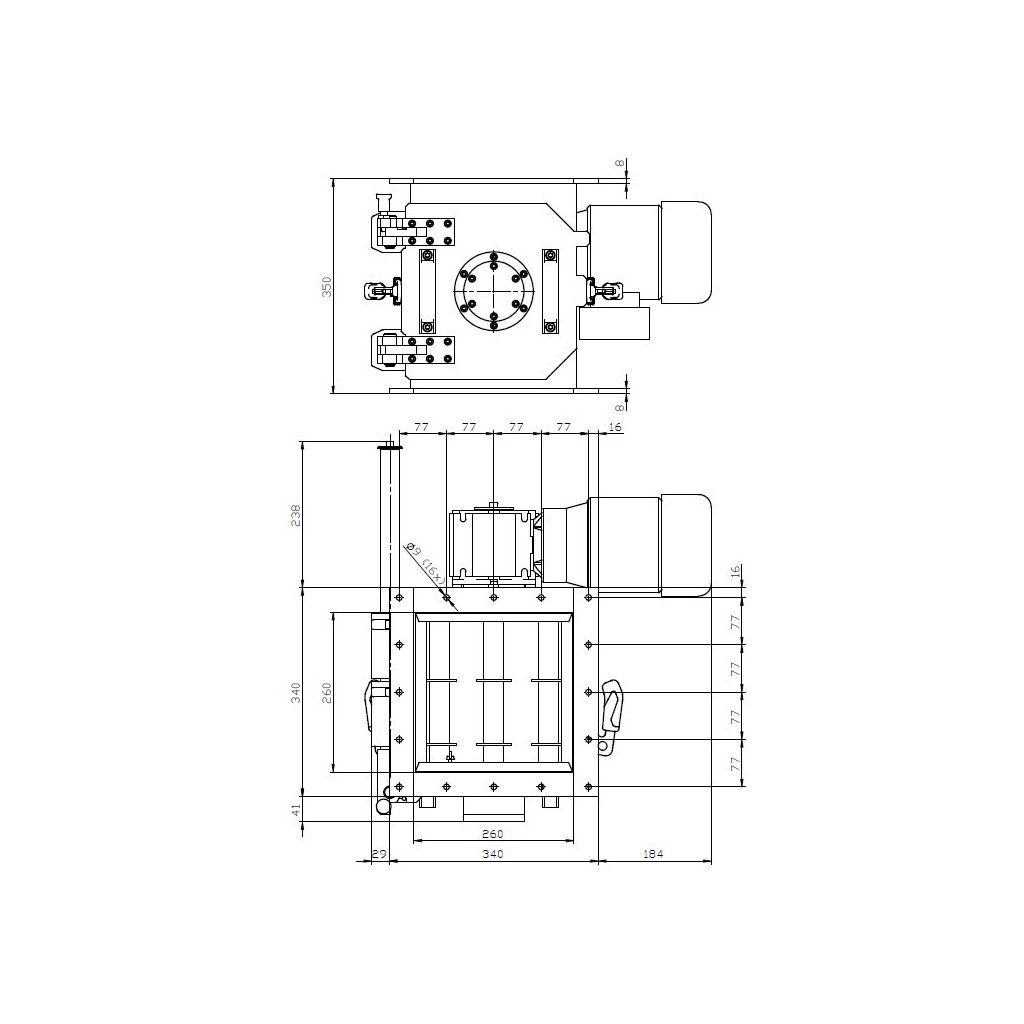

Input/output: | 260x260 mm |
The item has been sold out… |
