Plate magnetic separator
Plate magnetic separators are robust devices designed to remove ferrous (iron-based) contaminants from powders, granules, bulk solids or free-flowing materials. Installed above conveyors, under chutes or at material discharge/inlet points, they act as a first-line barrier against metal fragments — protecting your production line and improving product purity.
Product sorting
Brands
List of products
Listing controls
They are used wherever we need to separate impurities originating from iron or steel from other commonly used bulk materials. These include, for example, powdered materials, sawdust, grain, or flour. Thanks to the use of magnetic plates, which allow the material to flow freely, they are ideal for materials with poorer flow properties or for capturing metals that could cause clogging of the grate separator.

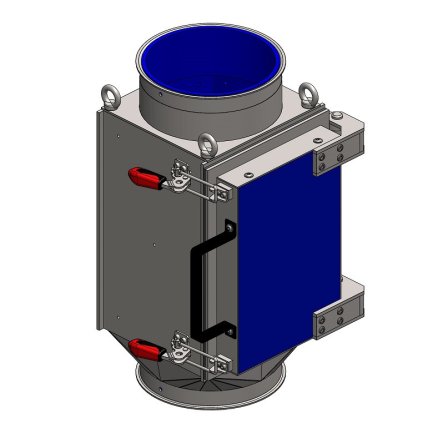

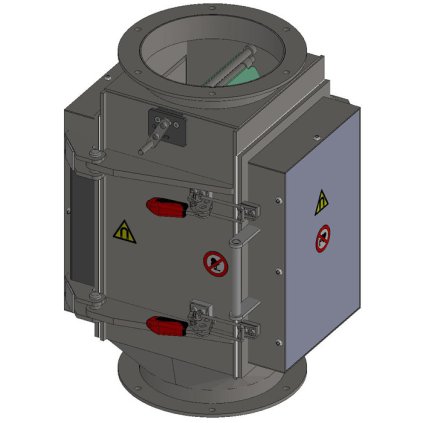

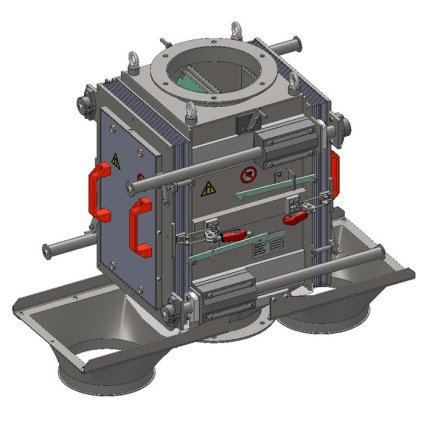

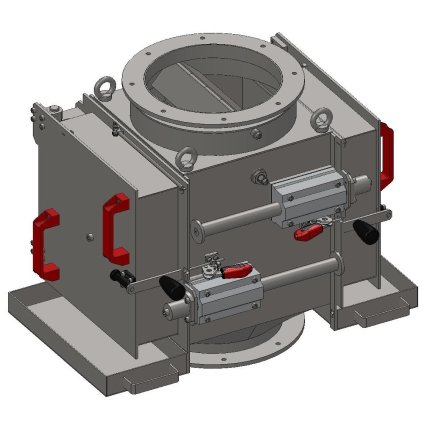

Magnetic plate separators are manufactured with inlet diameters of 100, 150, 200, and 250 mm. The body of the magnetic plate separator consists of a welded stainless steel housing, which becomes the main component of the piping system after connection. At the inlet to the separator, there is a deflector roof that directs the flow of material to the magnetic plates, thus helping to achieve maximum efficiency in the separation process. The magnetic housing of the separator is easy to clean and comes standard with ferrite magnets, but can also be fitted with strong neodymium NdFeB magnets on request.
Our Plate Separators – What We Offer
We offer a wide range of plate magnetic separators, designed for different materials, flow conditions, and industrial applications. Options include:
- Standard magnetic plates for coarse or moderately contaminated material flows — ideal where occasional metal contamination occurs.
- High-intensity plates (rare-earth magnets or stronger magnet configurations) — for applications requiring removal of smaller or weakly magnetic particles, or for heavier material streams.
- Custom sizes and configurations — to match conveyor width, chute shape or installation layout. We can adapt plate dimensions, mounting brackets and magnetic strength depending on your needs.
- Easy-mount and easy-clean versions — designed for quick installation and simple maintenance, minimizing production downtime.
