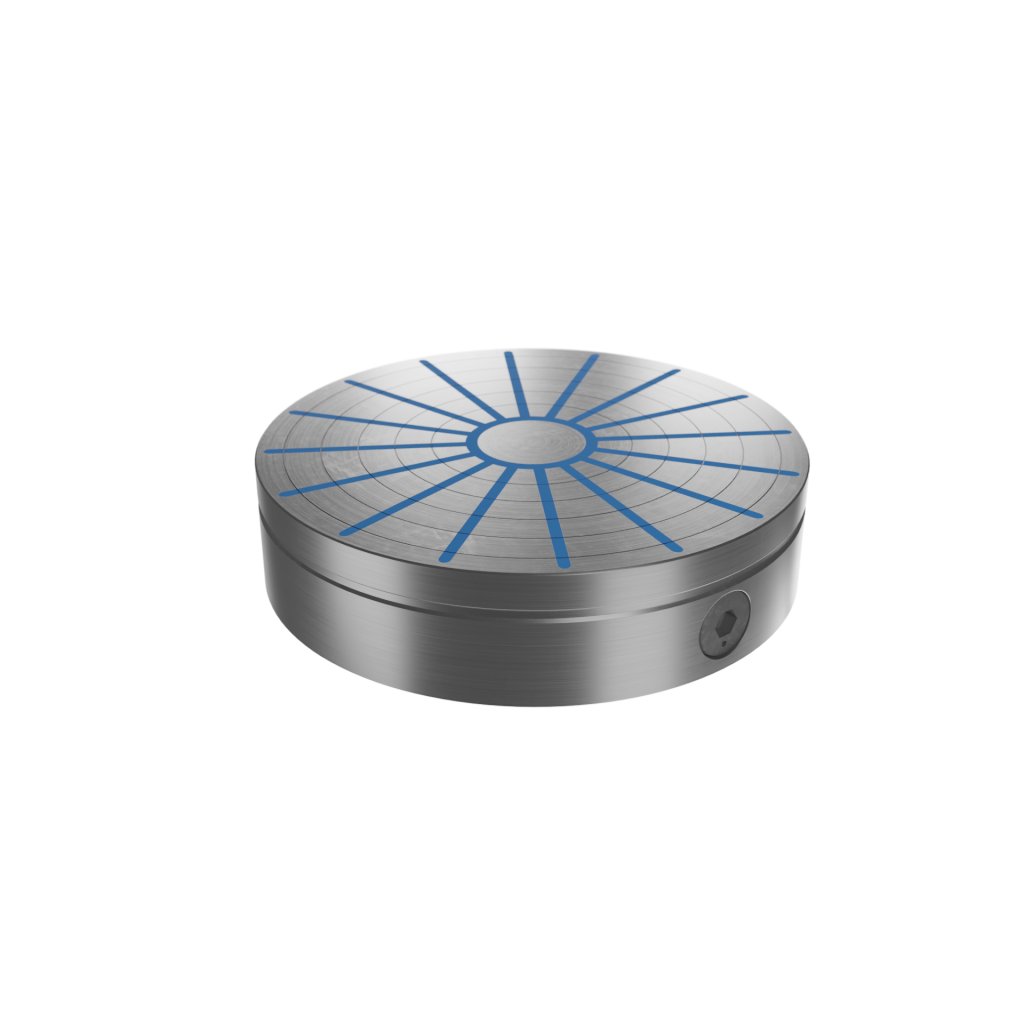

Permanent magnetic clamp Neostar dia. 200 x 57 mm
Permanent magnetic clamp Neostar dia. 200 x 57 mm
We ship within 24 hours
We ship the goods within 24 hours on business days.
We manufacture to measure
We produce custom-made separators within 2-3 months.
23 years on the market
We are a Czech company with 23 years of tradition on the market.
Thousands of satisfied customers
Thousands of packages shipped and satisfied customers.
Design
- Robust pole plate with radial poles
- Pole plate grinding limit: 5 mm
- Double, very efficient neodymium magnetic system
- Firm steel base with a robust switching mechanism
- Maximum clamping force of up to 140 N/cm2 depending on the sizes of fastener and machined components.
Fastener usage
- Turning and grinding of a round-shape workpiece
- Machining of the forehead and inner and outer diameter is possible to be done separately, or within a single operation
The package includes
- Switching key
- The magnet is delivered without central drilling
Fastener attaching to a machine
- On the lower side, the base is embedded, with two or four holes serving attaching to a proper flange.
Additional parameters
| Category: | Magnetic clamps for grinding |
|---|---|
| EAN: | 8595133917438 |
| Weight (kg): | 13 |
| Weight (lbs): | 28,665 |
| Diameter (mm): | 200 |
| Thickness (mm): | 57 |
| Clamping force (N/cm2): | 140 |
| The item has been sold out… | |
