The video below serves only to illustrate the principle of the function and may not correspond to the execution, design, number of grates and tubes of this particular item on the e-shop you are currently on.
The reported tear force values for some products were measured under ideal conditions given by the test environment. However, these values may vary depending on the specific type of environment where, for example, operating conditions and subsequent wear may affect the effectiveness of the product. However, measurements have not been made for all products and in such cases are only an estimate or internal auxiliary calculation by the vendor. The values quoted are therefore to be considered as indicative and the Seller declares that they are not a description of the goods in terms of the agreed characteristics in the sales contract on the basis of Article 6(a) of Directive (EU) 2019/771 of the European Parliament and of the Council of 20 May 2019 on certain aspects of contracts for the sale of goods, amending Regulation (EU) 2017/2394 and Directive 2009/22/EC and repealing Directive 1999/44/EC. In order to determine the exact value of the tear force in a specific case, it is necessary to carry out the actual measurement. In case the detected values of the breakaway force are not sufficient for you, as they do not correspond to the stated values, you can take advantage of the guaranteed return option within 30 days under the conditions stated here: https://magsy.shop/goods-returning/ and purchase a stronger magnet. These 30 days are just for testing the goods, after which the seller can refuse the return.
Additional parameters
| Category: | Magnetic drum |
|---|---|
| Electrical installation: | Without wiring (terminated at motor terminal block) |
| Total weight: | 50 kg |

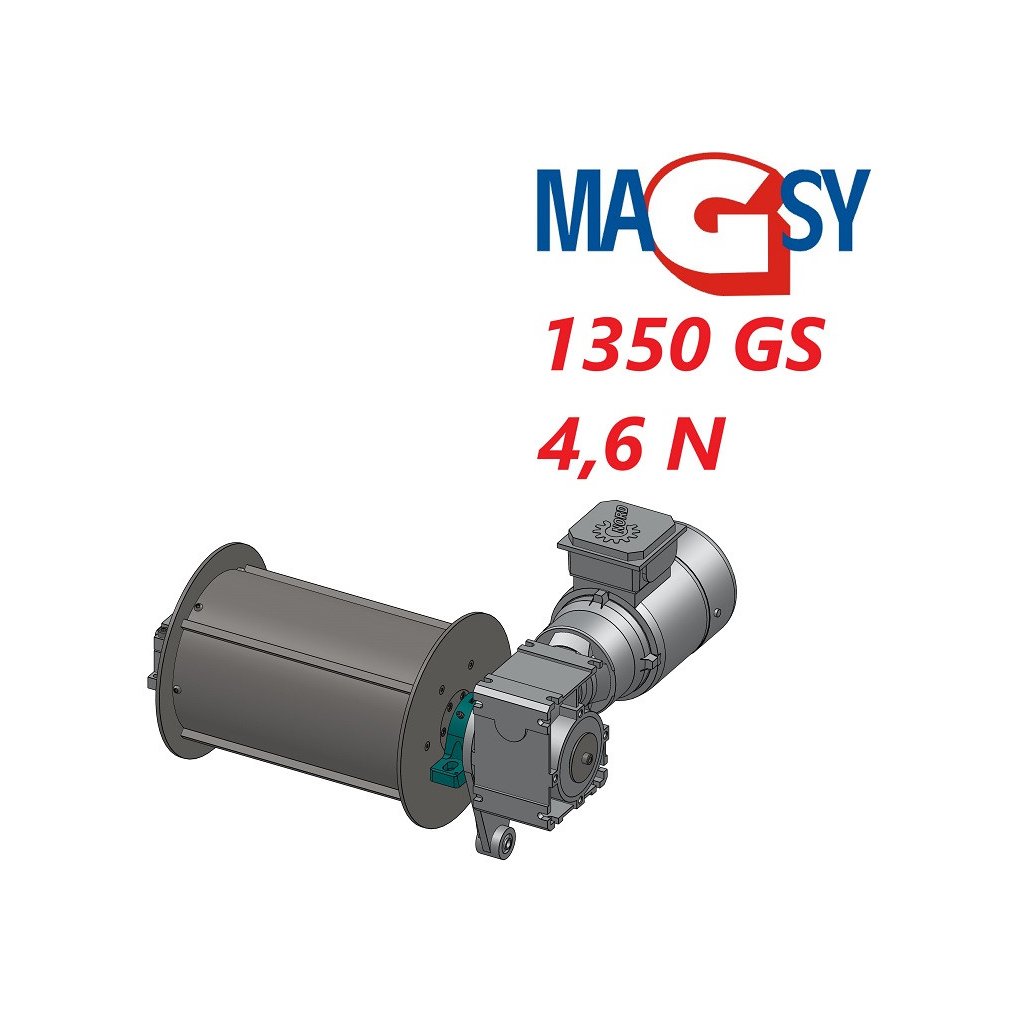

| Magnetic force on the cover tube: | 1.350 Gs |
| Material: | Drum shell: stainless steel DIN 1.4301 / AISI 304 / CSN 17240, clamping blocks: duralumin |
| Materials for separators: | Crystal sugar, Icing sugar, Wood chips, Kaolin, Flour, Pellets, Plastic granulate, Soot |
| Engine: | NORD - two-speed (0,37/0,55 kW, 17/34,5 rpm, protection IP 55, 230/400 V, 50 Hz |
| Breakaway force on the cover tube: | 4,6 N / 33 N |
| Surface treatment of the cover jacket: | Glass bead blasting |

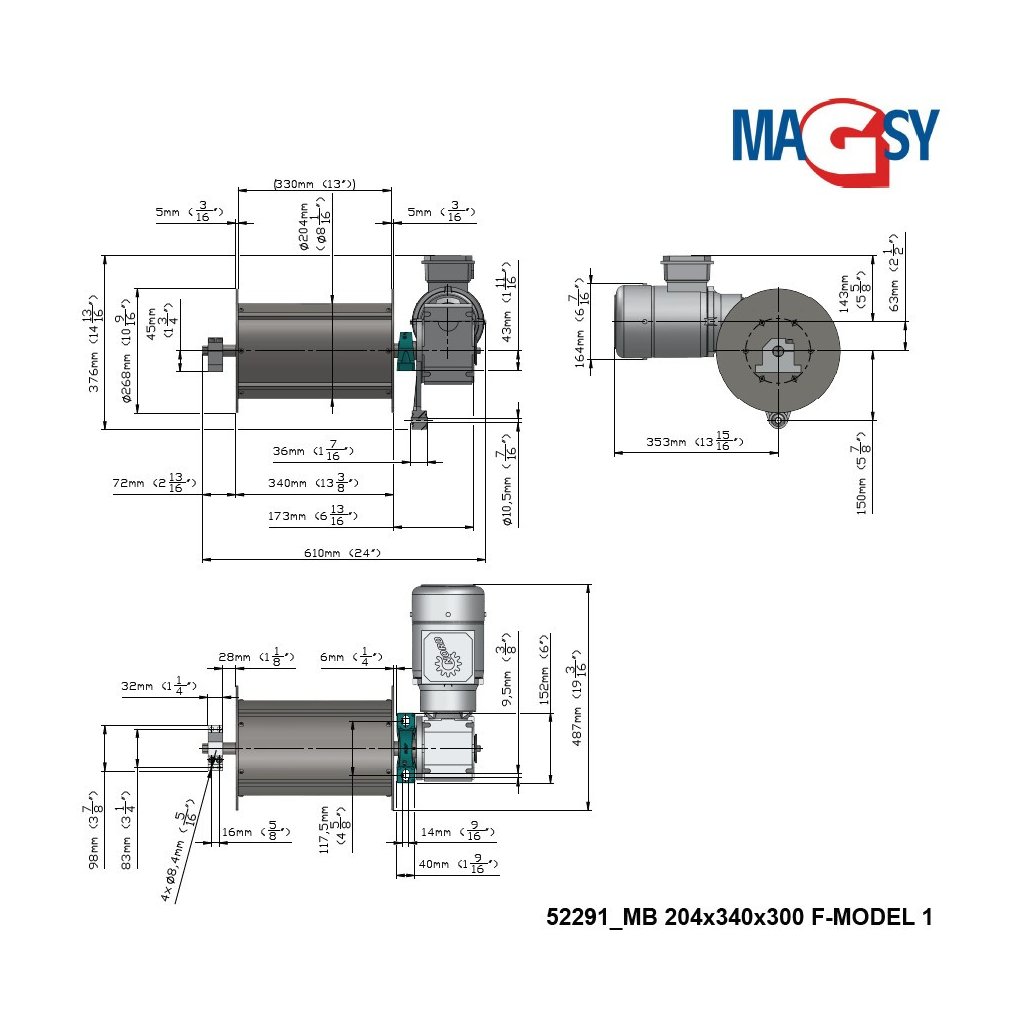

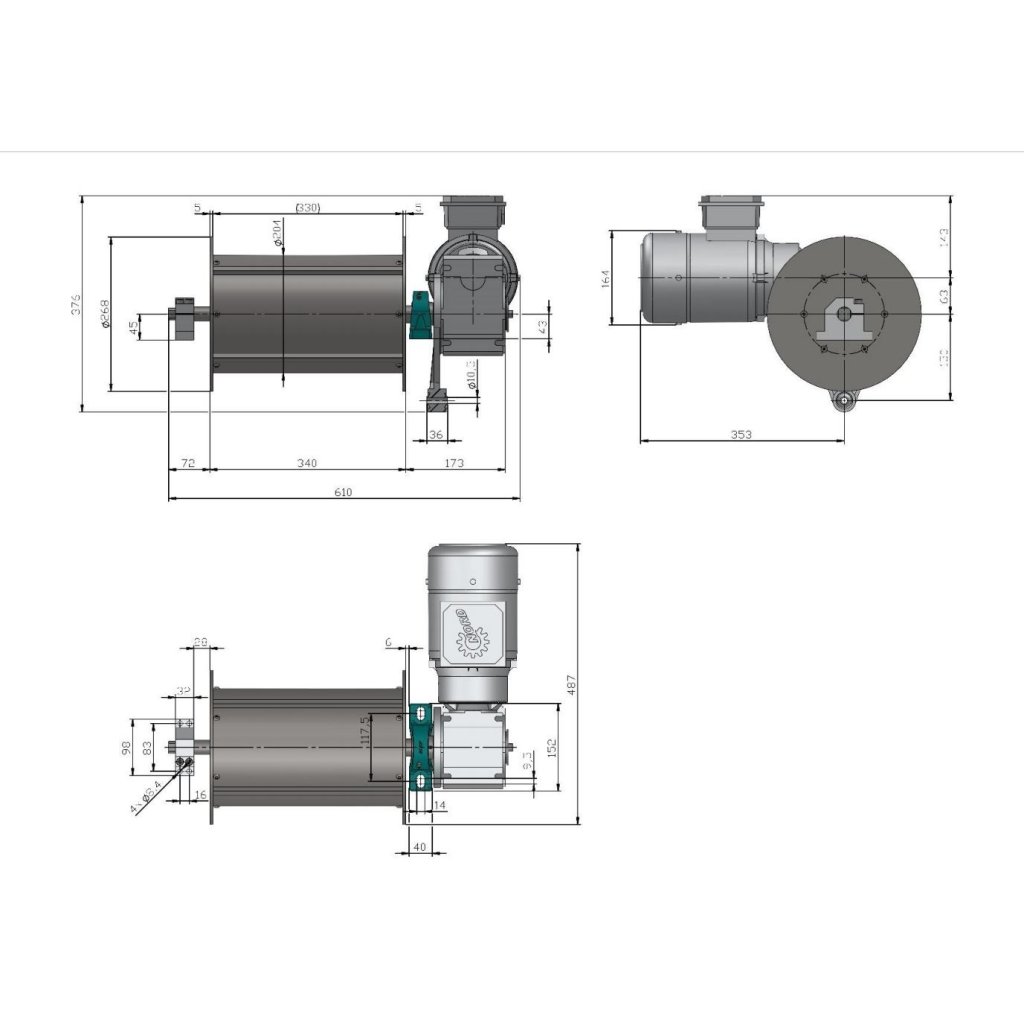

| Drum diameter: | 204 mm |
| Drum rotation speed: | 2x 17 or 34.5 rpm. |
| STATUS OF PRODUCT: | Testing |
| Drum width: | 340 mm (300 mm magnetic) |
| Temperature resistance: | 80 °C (this is a permanent temperature that will act on the magnetic drum, it is not a temperature that will permanently act on |
| Magnetic circuit type: | Standard |
| Magnet type: | Ferit |
Video
Be the first who will post an article to this item!
