Magnetic sweeper for cleaning carriers MM 1800 DM F-MODEL 1
We ship within 24 hours
We ship the goods within 24 hours on business days.
We manufacture to measure
We produce custom-made separators within 2-3 months.
23 years on the market
We are a Czech company with 23 years of tradition on the market.
Thousands of satisfied customers
Thousands of packages shipped and satisfied customers.

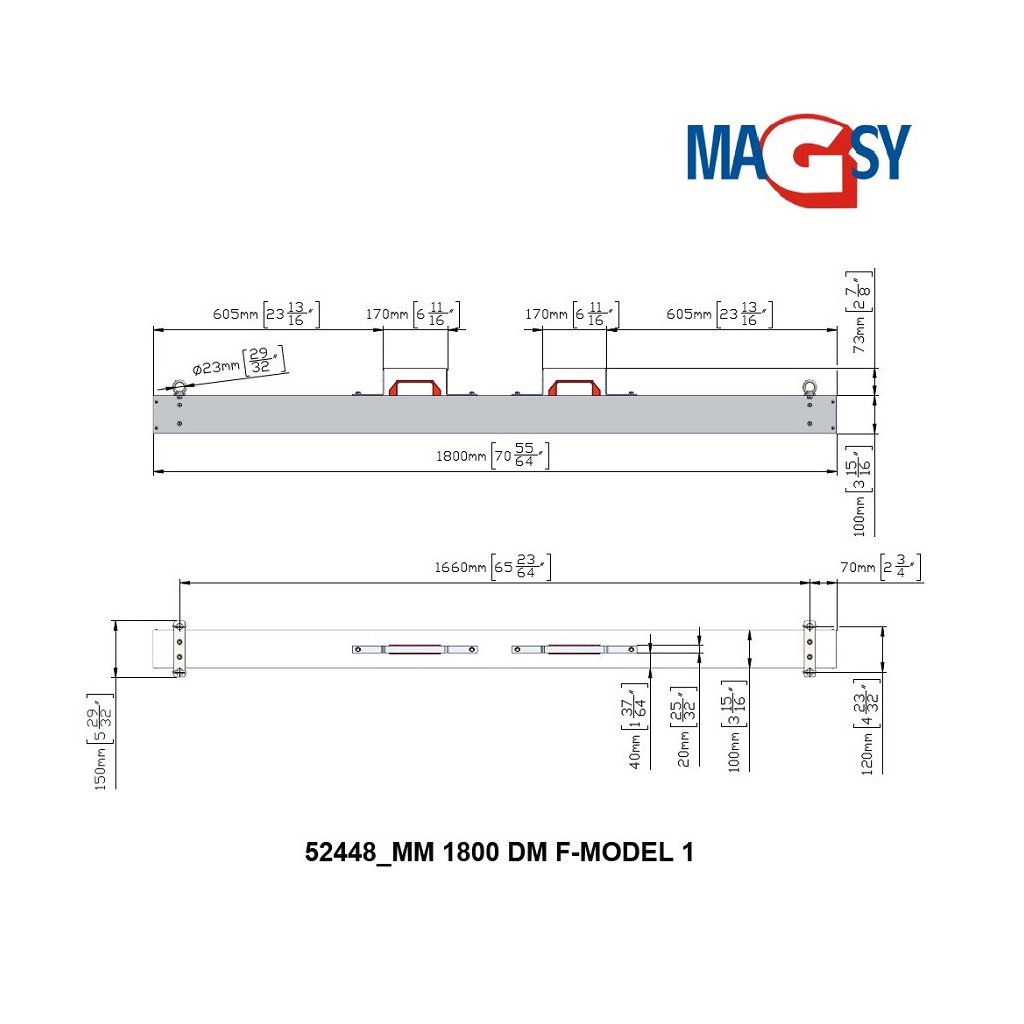

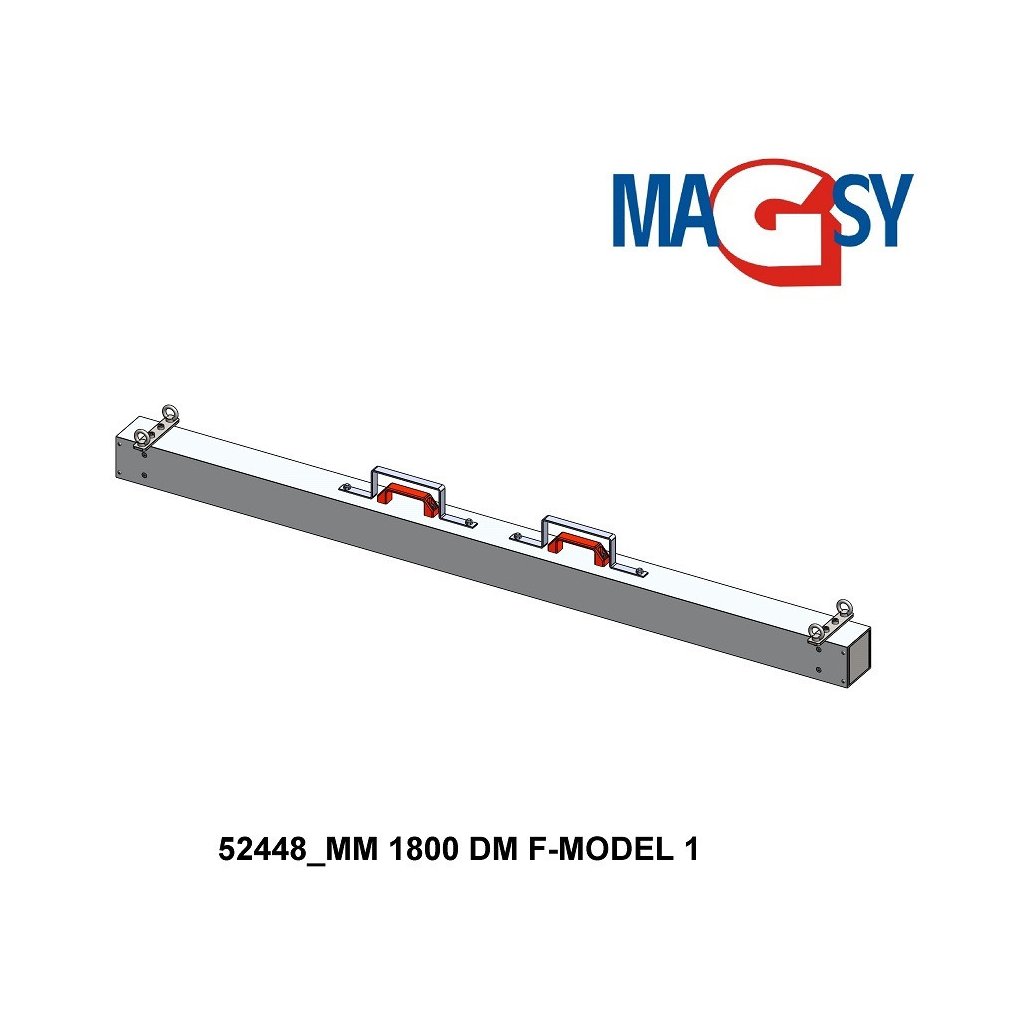

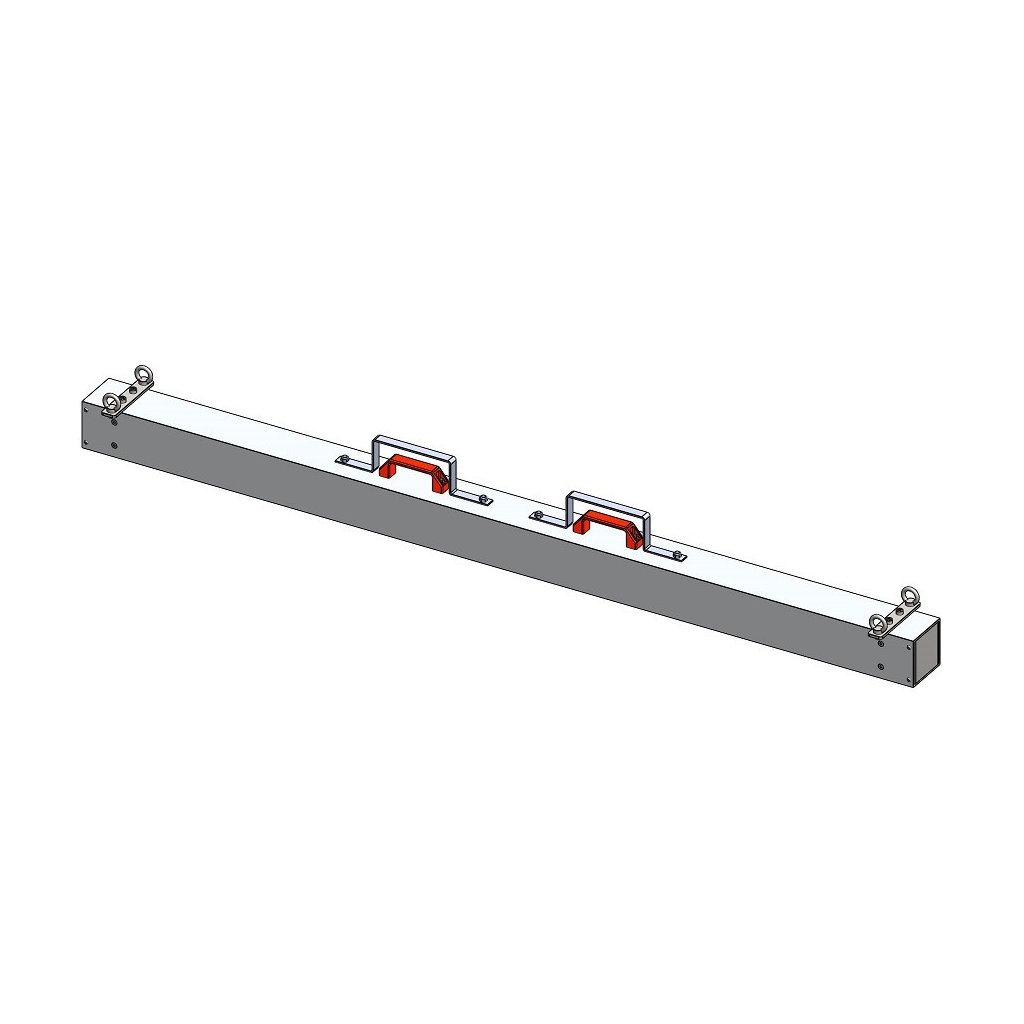

The magnetic broom is suitable for collecting ferromagnetic impurities using a forklift. The broom width is 1,800 mm, it contains ferrite magnets. The magnetic broom is made of EN-AW 6060 aluminium. The broom features a Scotch-Brite brushed surface finish. The maximum working temperature of the magnetic broom is 80°C, and its total weight is 23.4 kg. Connection: 4x suspension eye Ø 23 mm.
For more information, visit: www.magsy.cz
Tests of collecting various metallic material
| MM 1800 DM F-MODEL 1 52448 |
Distance from the surface |
||
| 30 mm | 50 mm | 80 mm | |
| Lifted object | Collection success rate | ||
| Small office clip (0,3 g) | 100 % | 100 % | 80 % |
| Steel splinter (1,4 g) | 100 % | 100 % | 0 % |
| Self-tapping screw 4x60 (2,8 g) | 100 % | 100 % | 70 % |
| Self-tapping screw 5x80 (6 g) | 100 % | 100 % | 40 % |
| Pad 5 (0,3 g)) | 100 % | 100 % | 0 % |
| Pad 8 (1,5 g) | 100 % | 90 % | 0 % |
| Pad 10 (2,9 g) | 100 % | 90 % | 0 % |
| Nut M5 (1,1 g) | 100 % | 30 % | 0 % |
| Nut M8 (4,6 g) | 100 % | 10 % | 0 % |
| Nut M10 (10 g) | 100 % | 10 % | 0 % |
| Screw M6x10 (4 g) | 100 % | 10 % | 0 % |
| Screw M8x20 (11,8 g) | 100 % | 50 % | 0 % |
| Screw M10x55 (37,4 g) | 100 % | 60 % | 0 % |
Additional parameters
| Category: | Magnetic sweepers |
|---|---|
| EAN: | 8595134061284 |
| Total weight: | 24 kg |
| Body material: | Aluminium EN-AW 6060 |
| Material of clamping mechanisms: | Stainless steel DIN 1.4301, EN 10088, (X5CrNi 18-10), ČSN 17240, AISI 304, AKV 7 |
| Surface treatment: | Schotch-bright grinding |
| Surface treatment of clamping mechanisms: | Glass bead blasting |
| Connecting: | 4x hanging eye Ø 23 mm (0 29⁄32 in) |
| STATUS OF PRODUCT: | New |
| Magnetic surface width (mm): | 1800 |
| Temperature resistance: | 80 °C |
| Magnet type: | Ferit |
| The item has been sold out… | |
