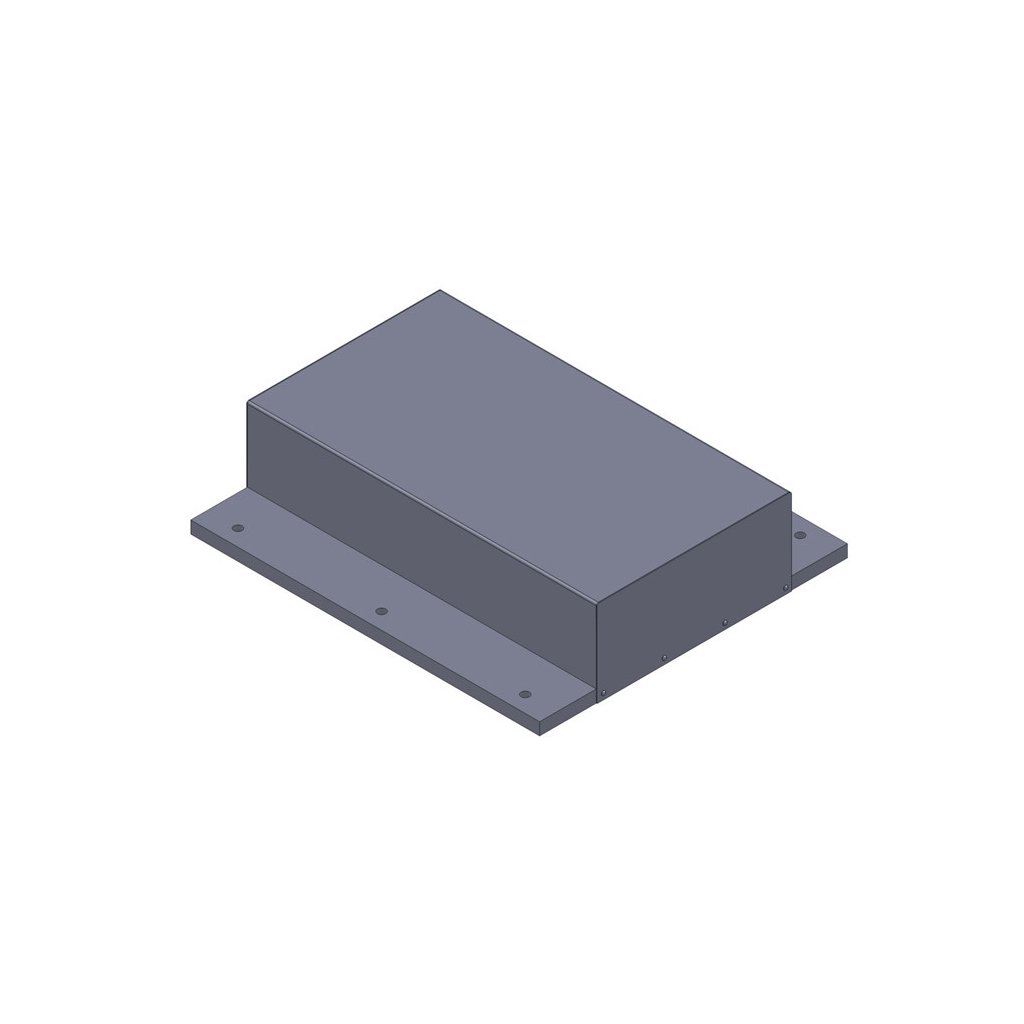

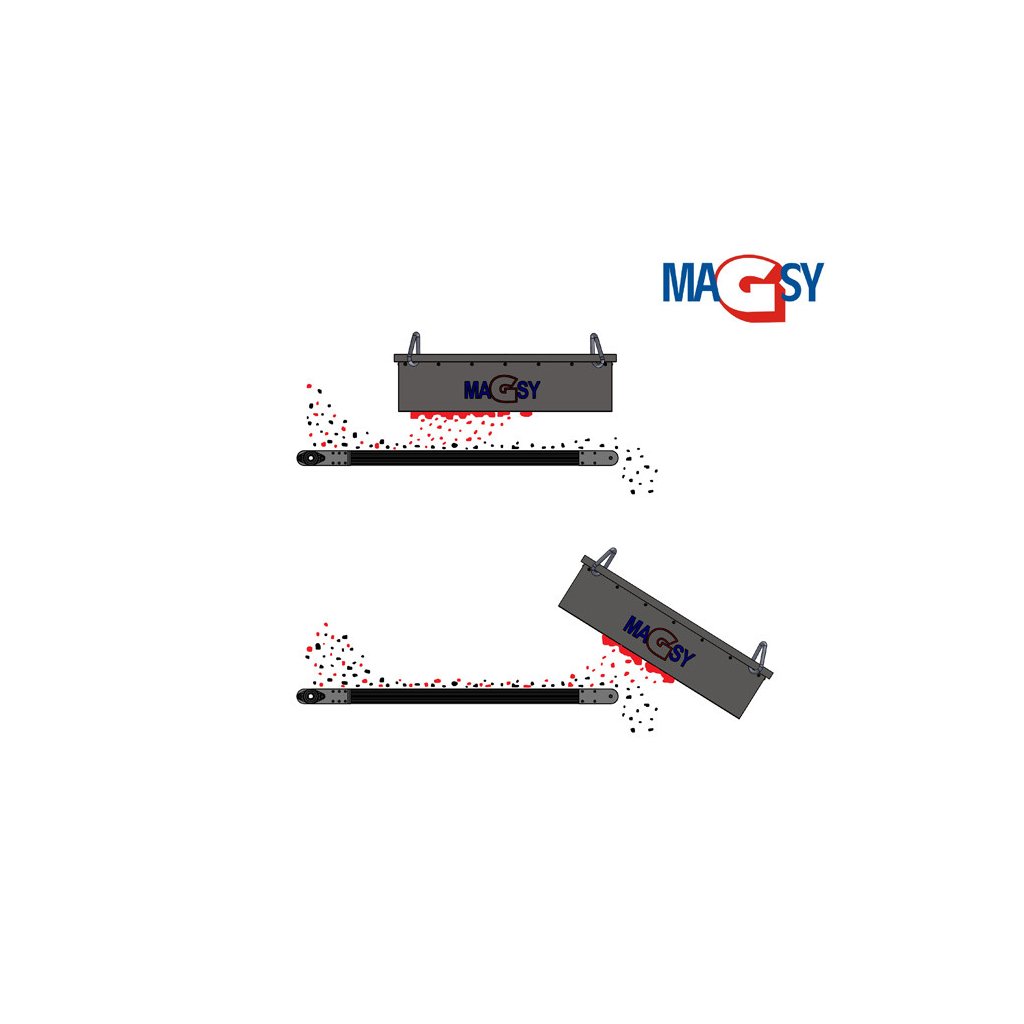

Magnetic plate is suitable for a separation of ferromagnetic impurities from dry mixtures.

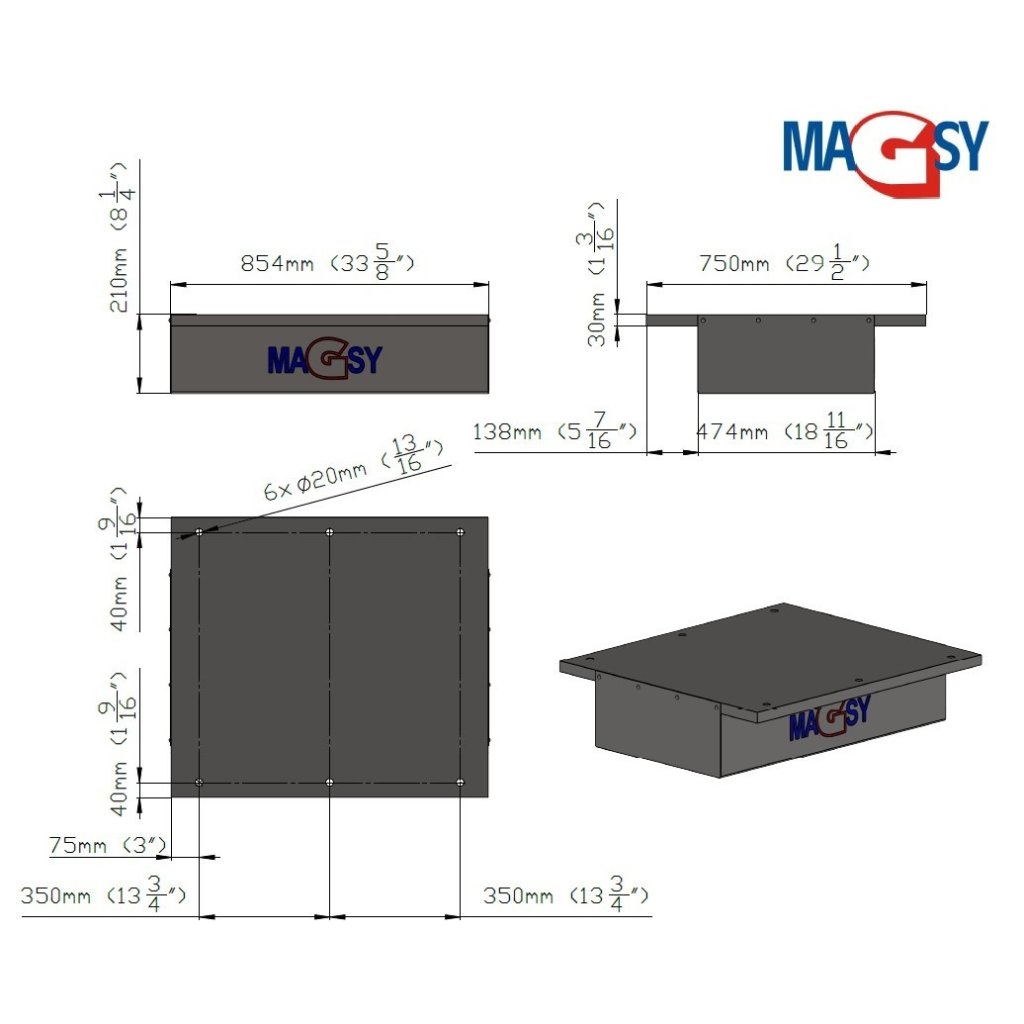

Magnetic plate dimensions are 850x474x180 mm.
Magnetic plate includes ferrite magnets.
The plate is surface-treated by coating; the cover is without any surface treatment.
Magnetic induction on the core is 1500 G.
The magnets resist temperatures of up to 200°C.
Total magnetic plate weight is 470 kg.
The plate may be hung using apertures situated on both of the plate sides.
For more information please see: www.magnetic-separators.info (It will open in a new window)
Additional parameters
| Category: | Magnetic plates |
|---|---|
| EAN: | 8595133923590 |
| Length: | 854 mm |
| Weight (kg): | 470 |
| Details (URL): | https://magneticke-separatory.cz/separatory/magneticka-deska-nad-pasovy-dopravnik-md/ |
| Width (mm): | 474 |
| Temperature resistance: | 150 °C |
| Type: | Ferit |
| Height: | 210 mm |
