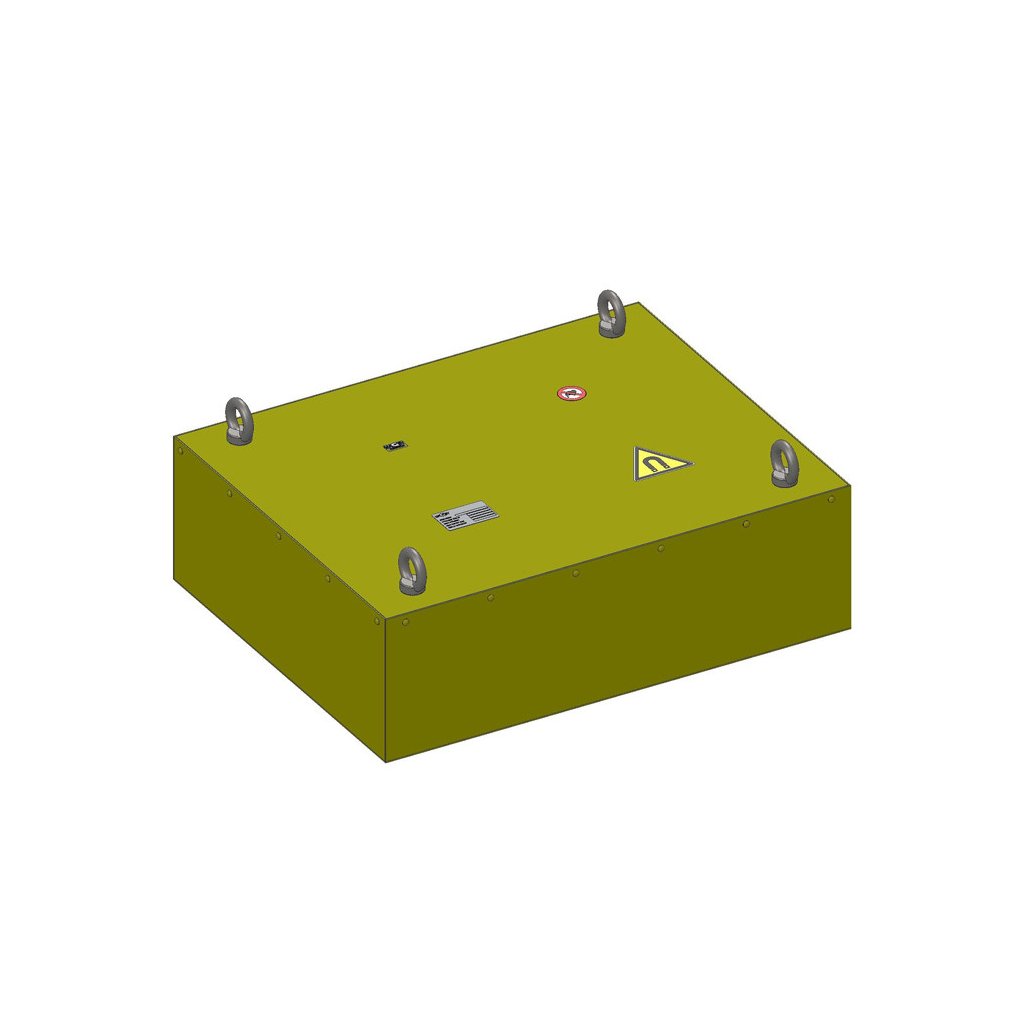

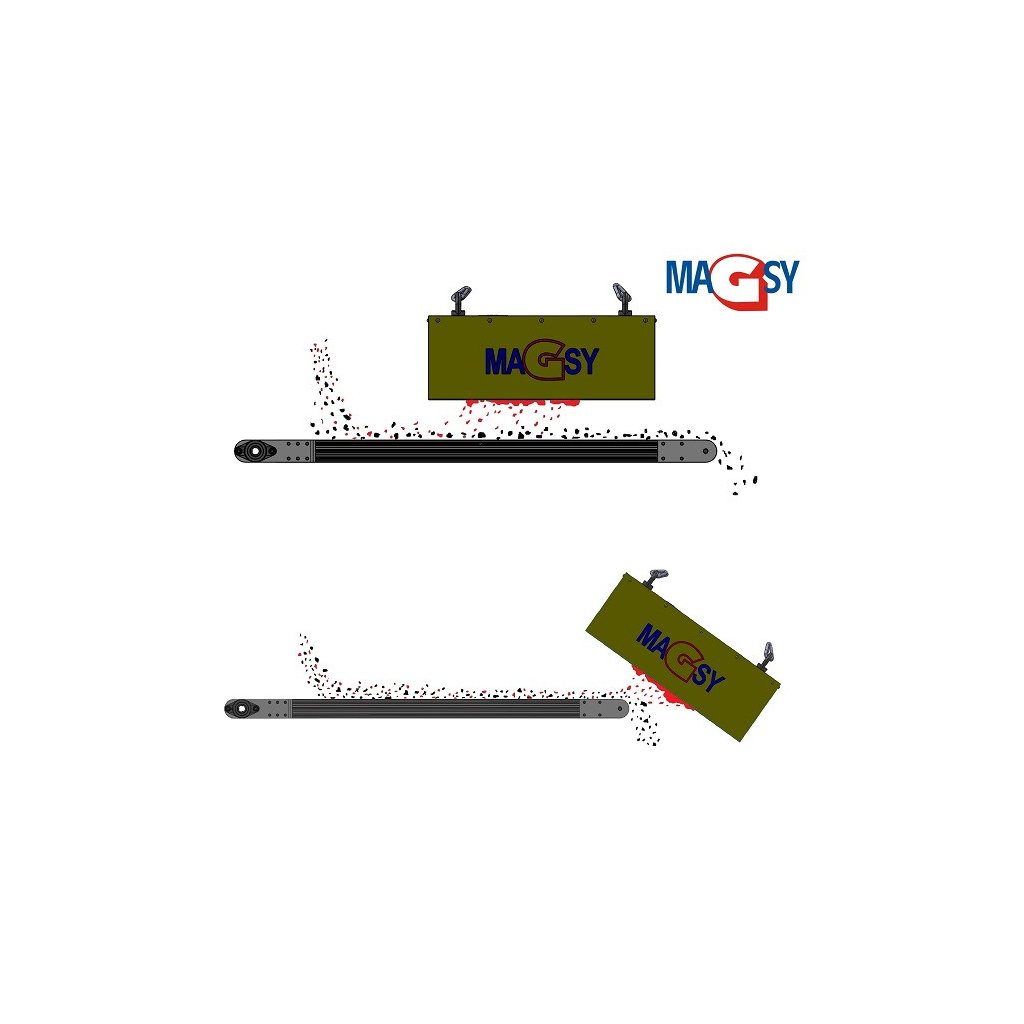

This magnetic plate is suitable for a separation of ferromagnetic impurities from dry mixtures.

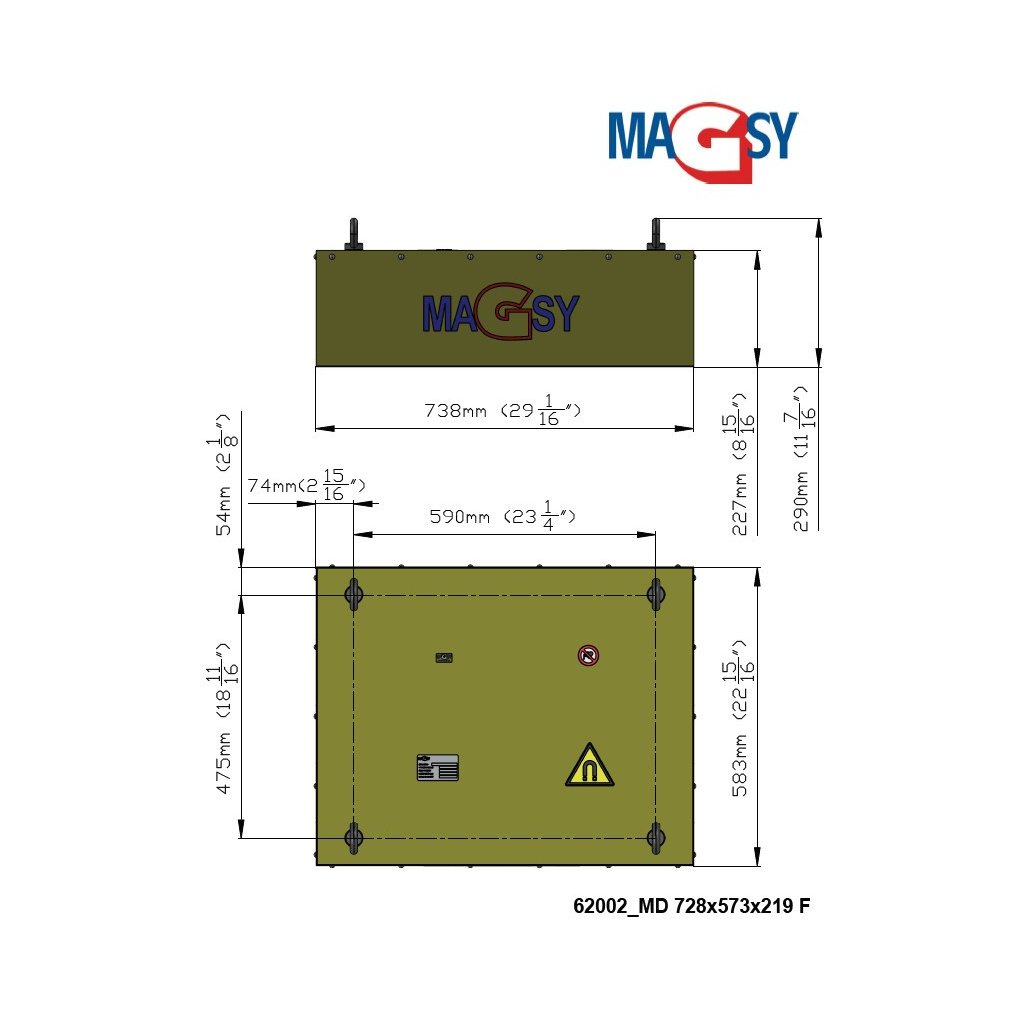

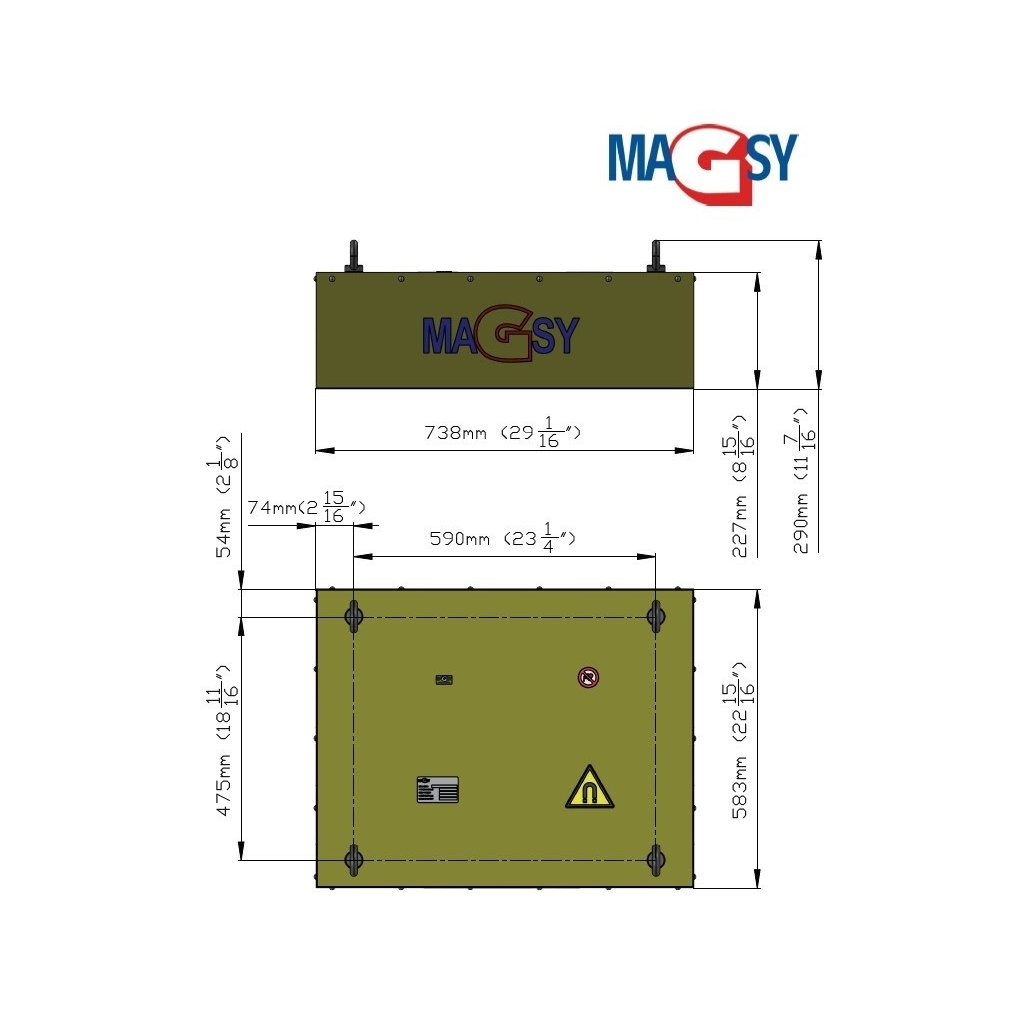

Magnetic plate dimensions are 738 x 583 x 227 mm.
Magnetic plate includes ferrite magnets.
The plate is surface-treated by coating; the cover is without a surface treatment.
Core magnetic induction is 1200 G.
Temperature resistance of the magnets is up to 45 °C.
Magnetic plate total weight is 465 kg.
The plate includes 4 screws with meshes (M16 screw) by means of which it is possible to hang the plate.
For more information please see: www.magnetic-separators.info (It will open in a new window)
Additional parameters
| Category: | Magnetic plates |
|---|---|
| EAN: | 8595133916219 |
| Length: | 738 mm |
| Weight (kg): | 465 kg |
| Details (URL): | https://magneticke-separatory.cz/separatory/magneticka-deska-nad-pasovy-dopravnik-md/ |
| Width (mm): | 583 mm |
| Temperature resistance: | 45 °C |
| Type: | Ferit |
| Magnet type: | Ferit |
| Height: | 227 mm |
| The item has been sold out… | |
