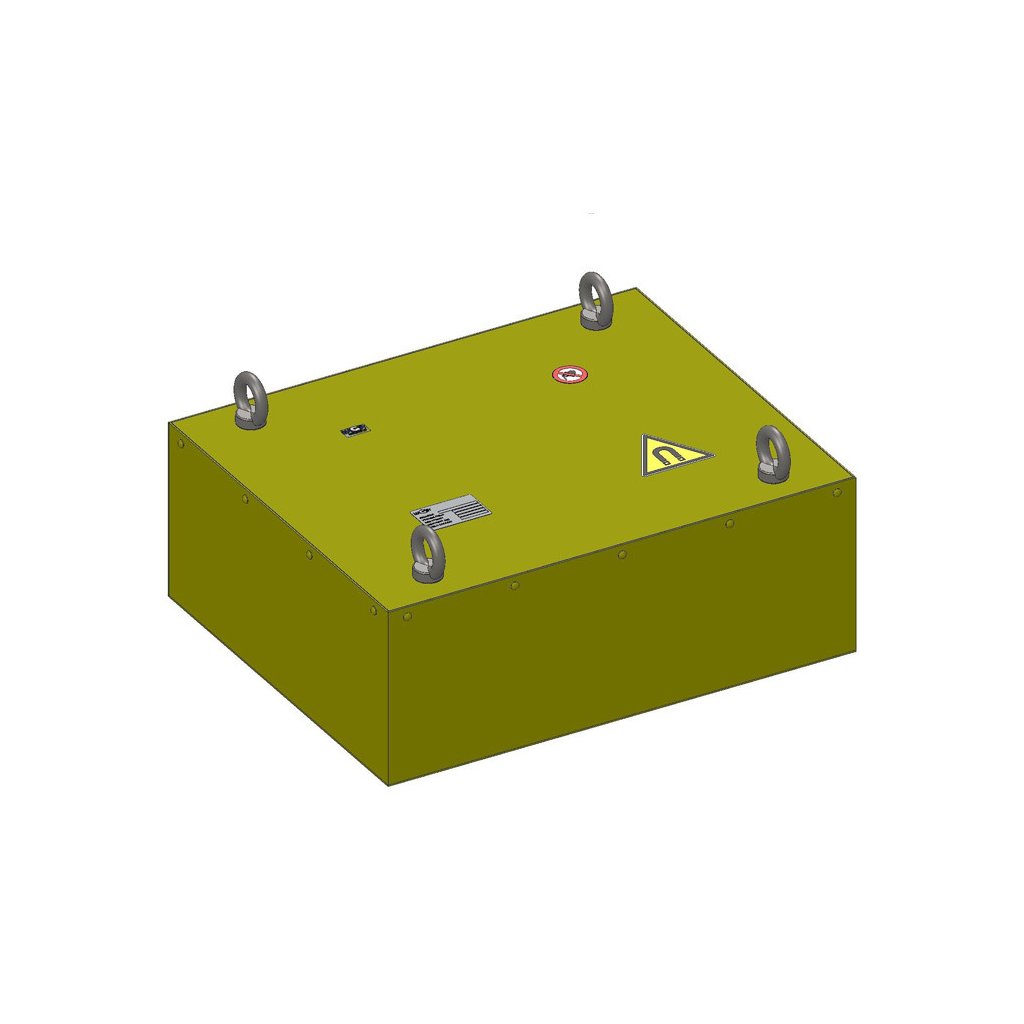

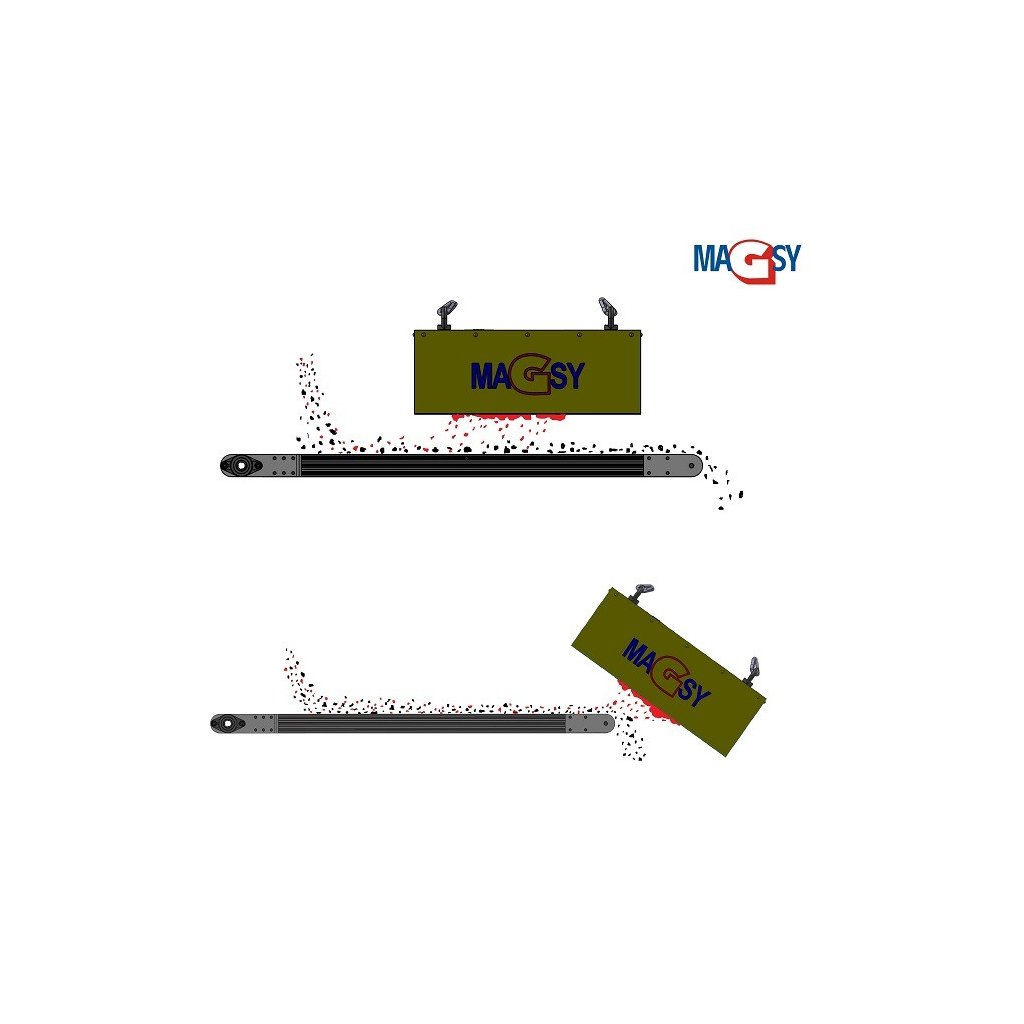

This magnetic plate is suitable for a separation of ferromagnetic impurities from dry mixtures.

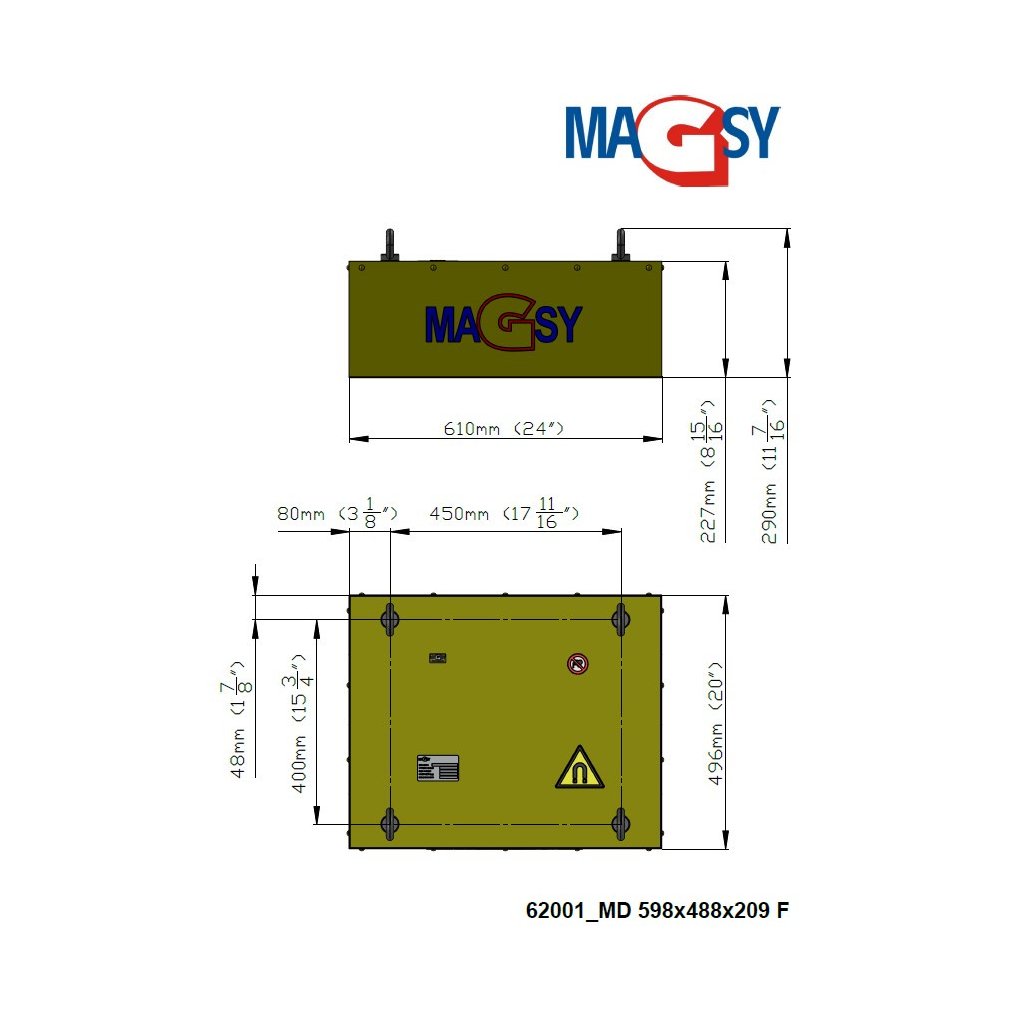

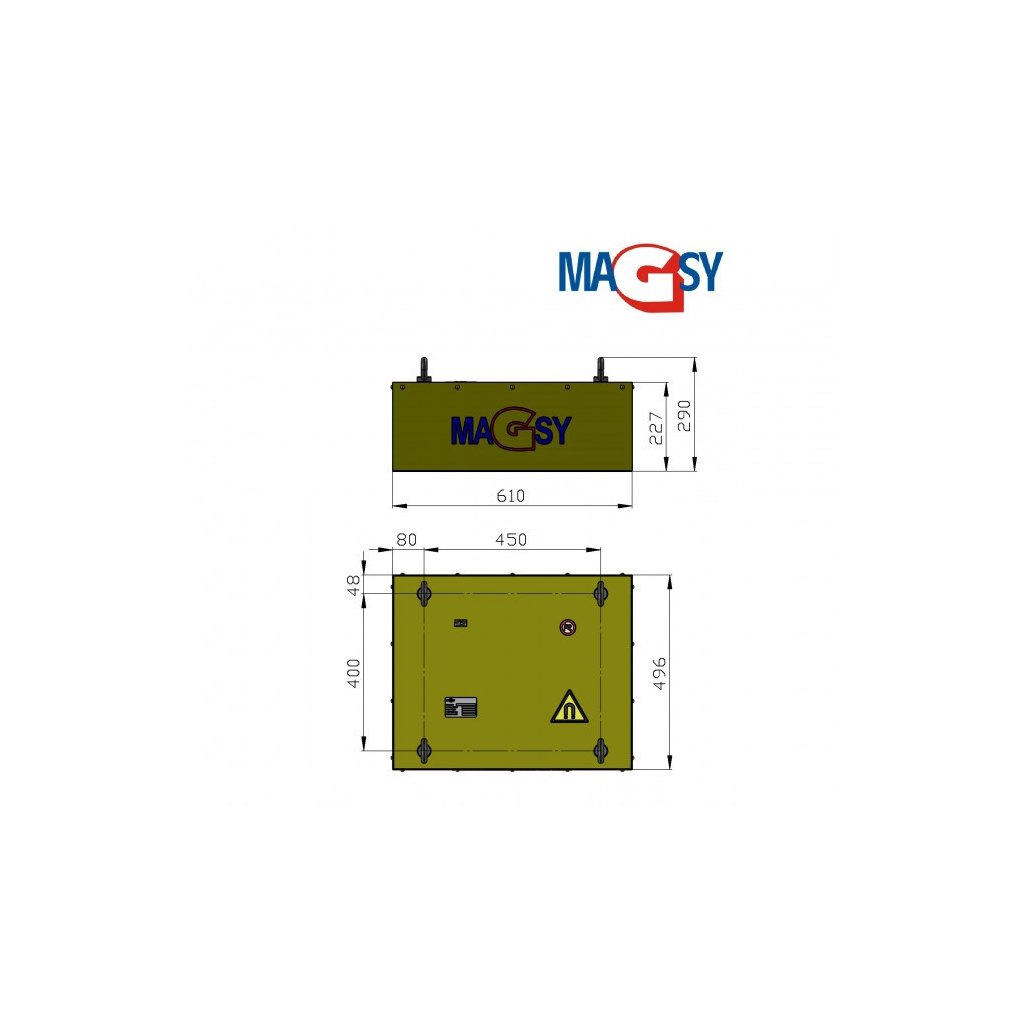

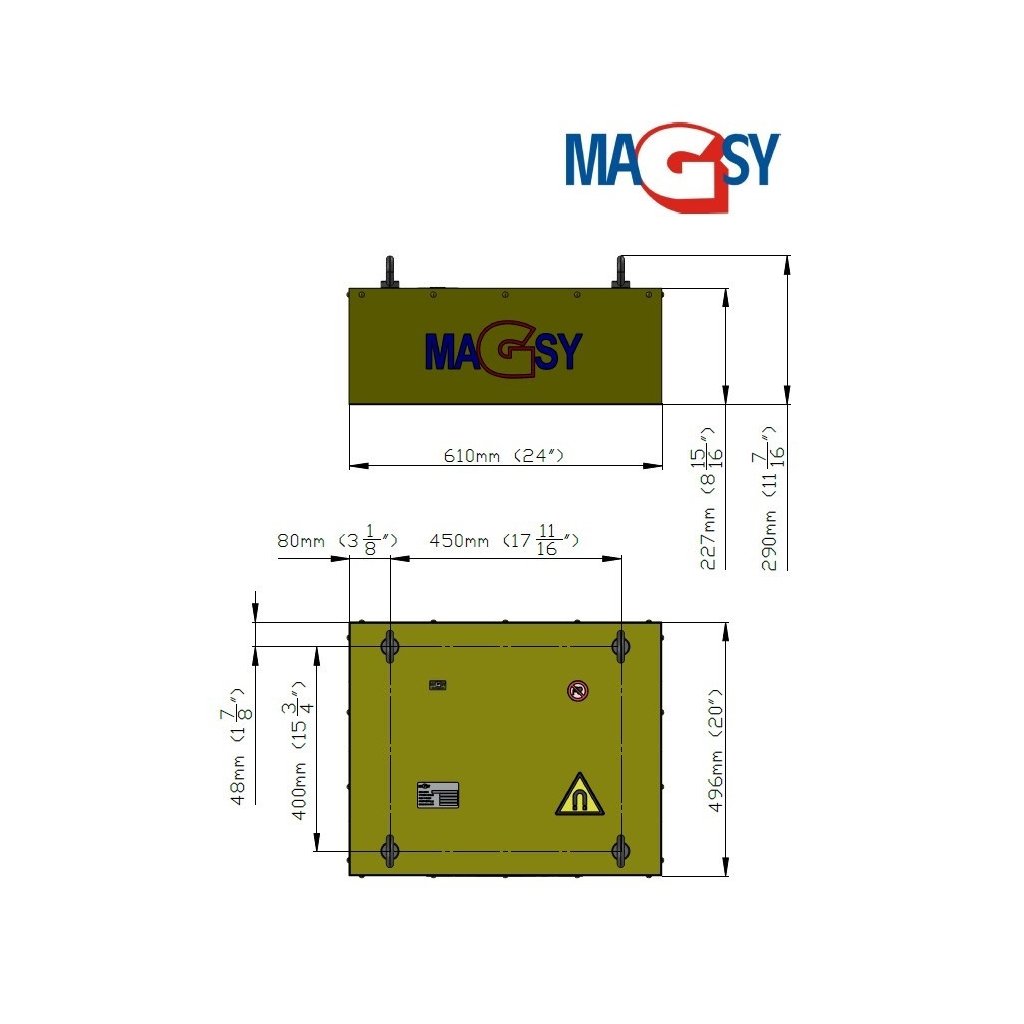

Magnetic plate dimensions are 610x496x227 mm.
Magnetic plate includes ferrite magnets.
The plate is surface-treated by coating; the cover is without a surface treatment.
Core magnetic induction is 1390 G.
Temperature resistance of the magnets is up to 45 °C.
Magnetic plate total weight is 337 kg.
The plate includes 4 screws with meshes (M16 screw) using which the plate may be hung.
For mor information please see: www.magnetic-separators.info (It will open in a new window)
Additional parameters
| Category: | Magnetic plates |
|---|---|
| EAN: | 8595133916202 |
| Length: | 610 mm |
| Weight (kg): | 337 |
| Details (URL): | https://magneticke-separatory.cz/separatory/magneticka-deska-nad-pasovy-dopravnik-md/ |
| Width (mm): | 496 mm |
| Temperature resistance: | 45 °C |
| Type: | Ferit |
| Height: | 227 mm |
| The item has been sold out… | |
