Magnet for injection moulding machine hopper MDN 250 MVM-EKO
We ship within 24 hours
We ship the goods within 24 hours on business days.
We manufacture to measure
We produce custom-made separators within 2-3 months.
23 years on the market
We are a Czech company with 23 years of tradition on the market.
Thousands of satisfied customers
Thousands of packages shipped and satisfied customers.

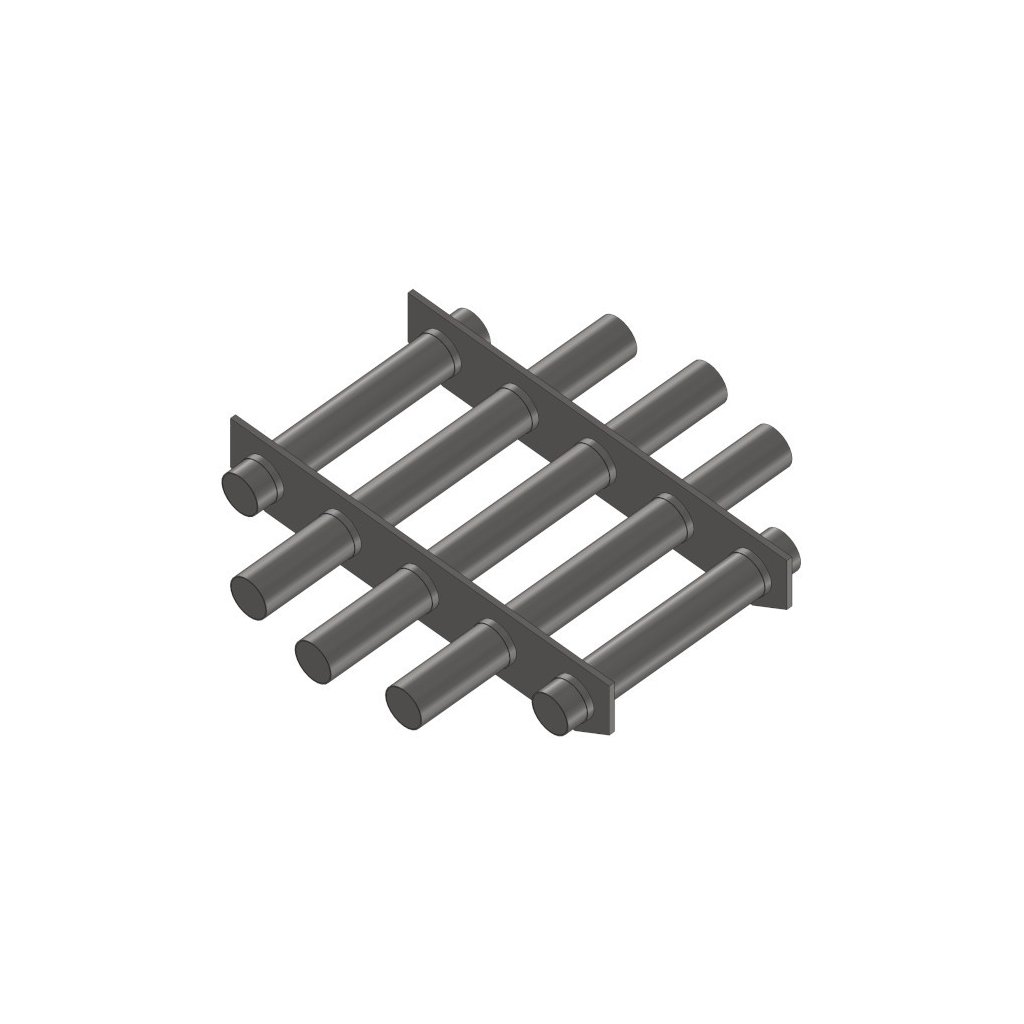

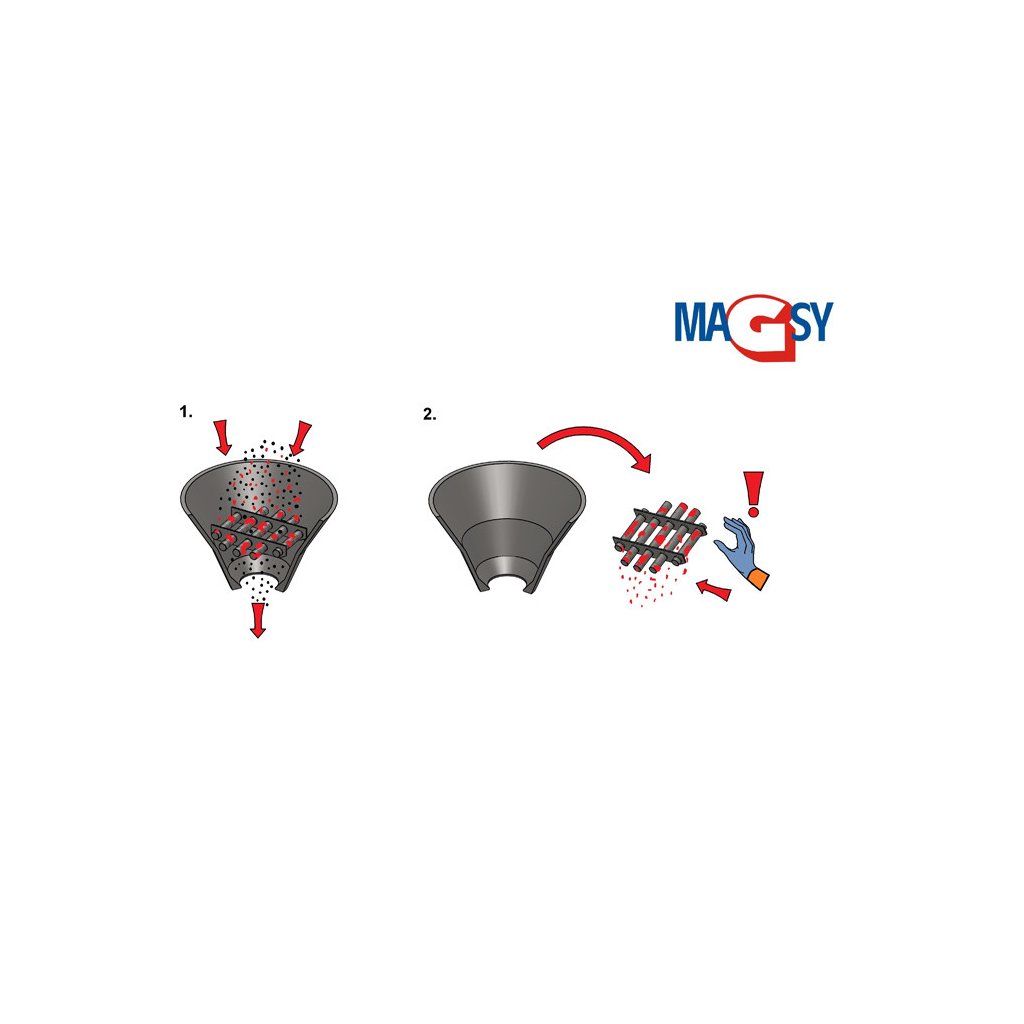

Magnet to be used in injection molding machine hoppers is designed for a separation of ferromagnetic impurities from dry mixtures characterized by good loose parameters.

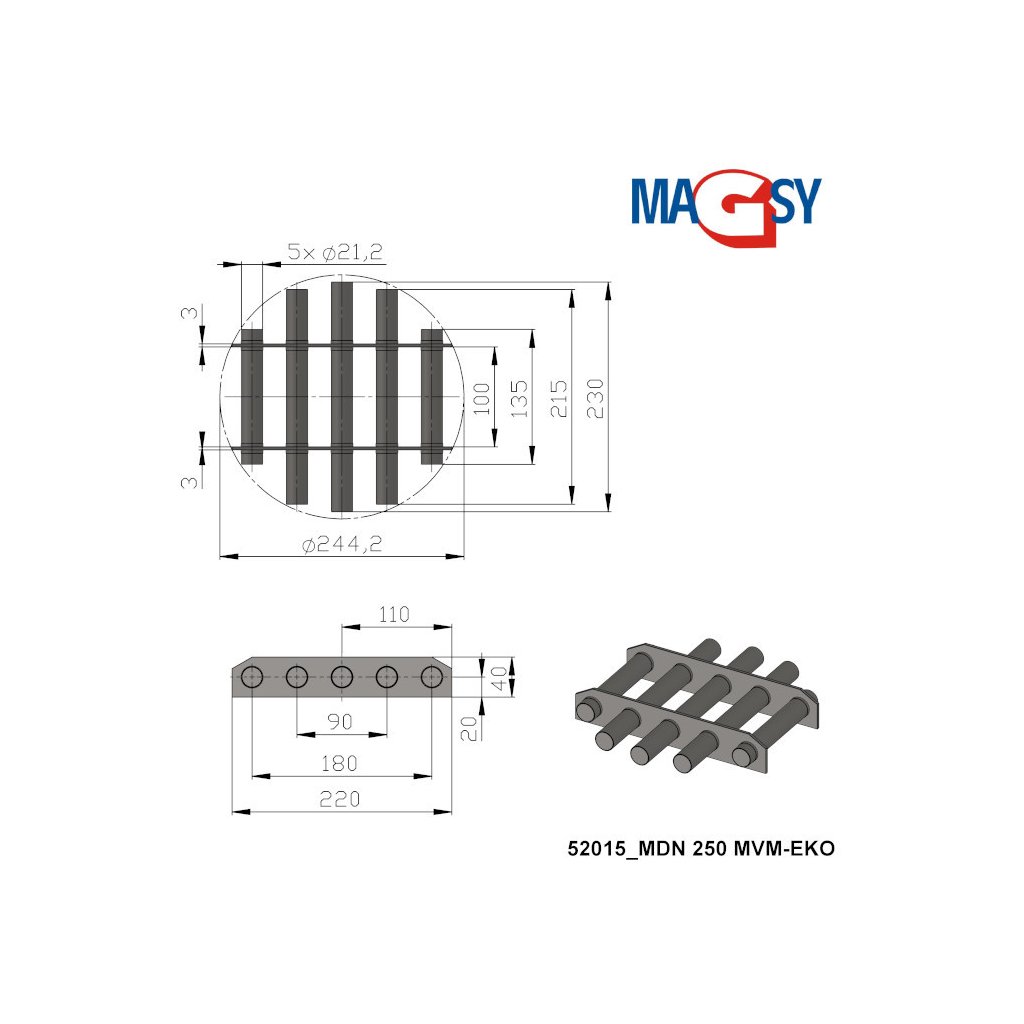

The device contains 5 rods; neodymium magnets are included.
Magnet to be used with injection molding machine hoppers is manufactured using DIN 1.4301 stainless steel.
Magnetic induction on the coat is 4600 G; coat tear-off force is 60 N.
Magnetic separator body is surface-treated by polishing.
Maximum working temperature of this separator is 80 °C, total weight is 2.5 kg.
For more information please see: www.magnetic-separators.info (It will open in a new window)
Additional parameters
| Category: | Magnets for hoppers |
|---|---|
| EAN: | 8595133939775 |
| Average: | DN 250 |
| Weight (g): | 2500 |
| Magnetic force on the tube: | 4.600 Gs |
| Magnetic force at a distance of 1 mm: | 3.700 Gs |
| Magnetic force in the distance. 5 mm: | 1.600 Gs |
| Material: | Stainless steel DIN 1.4301 / AISI 304 / CSN 17240 |
| Breakaway force on the tube: | 46 N |
| Number of magnetic rods: | 5 |
| Surface treatment: | Glass bead blasting |
| Version: | ECO |
| Magnetic rod diameter: | 22 mm |
| STATUS OF PRODUCT: | New |
| Temperature resistance of the magnet: | 80 °C |
| Magnet type: | Neodym (NdFeB) |
| Suitable for the food industry: | YES |
