The magnetic testing rod with a diameter of 26 mm is used for inspection and testing for the presence of metallic and magnetic contaminants in selected materials. It can be used in dry mixtures as well as liquid substances. Inside, there is a magnetic core with powerful NdFeB magnets providing sufficient strength for testing magnetic contaminants. By using circular movements, it is possible to test whether the material contains magnetic impurities. These are captured on the functional half of the rod. For subsequent removal, simply pull the handle and the impurities will automatically fall off the surface of the rod. No lengthy manual cleaning is required.

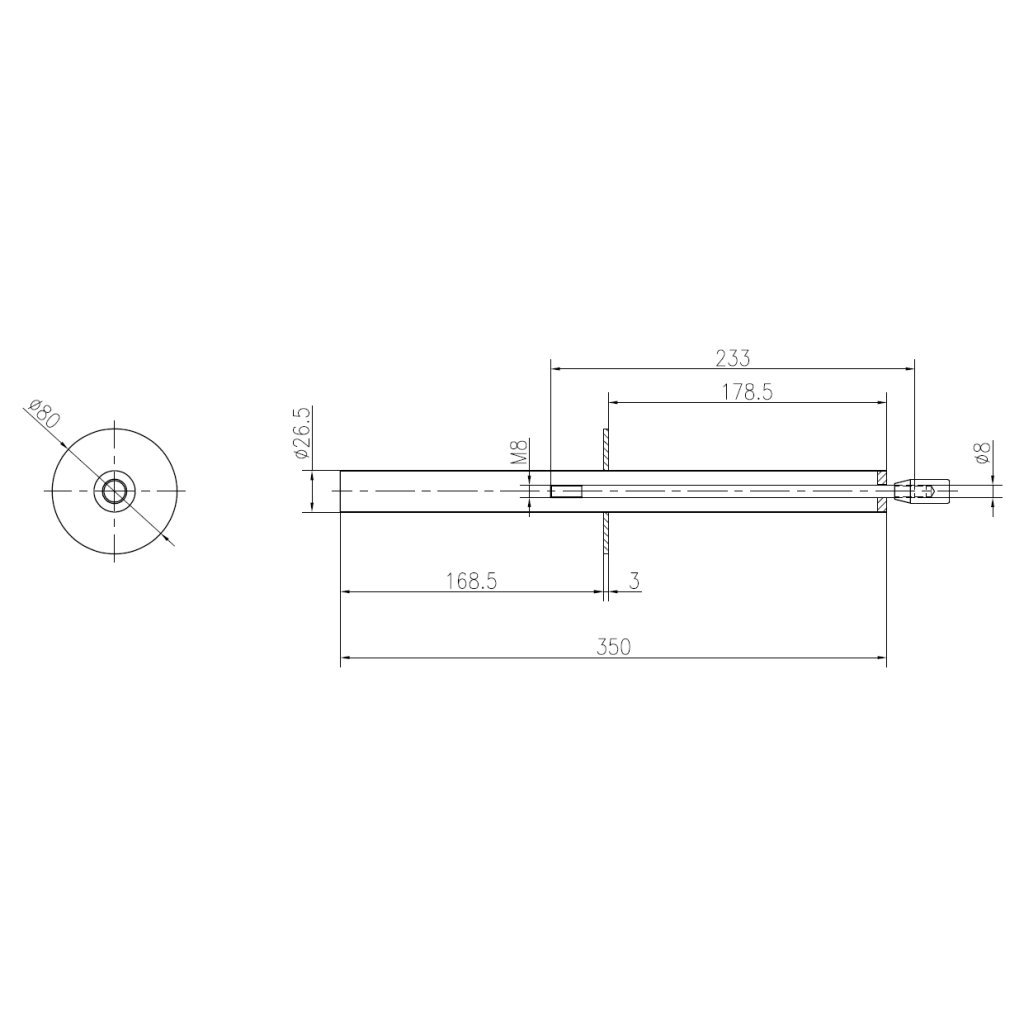

The testing magnetic rod is made of stainless steel according to standards DIN 1.4301 / AISI 304 / ČSN 17240 with a polished surface finish. Its weight is 1.1 kg. The diameter of the magnetic part is 26 mm and the length is 150 mm. The magnetic testing rod is equipped with neodymium magnets with a pull-off force of 102 N.
Procedure for measuring magnetic force
The measurement is performed using a standard gaussmeter at the location with the highest structural magnetic induction – at the pole pieces or at the lowest point of the magnetic circuit arc. The test is repeated 3 times at different locations of the magnetic circuit and the average magnetic induction is calculated.
Procedure for measuring pull-off force
The measurement is performed using a polished steel reference sample with a diameter of 10 mm and a height of 20 mm. The measurement is carried out at the location with the highest structural pull-off force – at the pole pieces or at the lowest point of the magnetic circuit arc. The force at which the reference sample detaches is recorded. The test is repeated 3 times and the average pull-off force is calculated.
For your information: 10 N ≈ approx. 1 kg.
The resulting pull-off force depends on many factors – e.g. the dimensions of the reference sample, the air gap between the reference sample and the tested magnetic circuit, the surface finish of the reference sample, etc.
Main advantages
The testing rod is equipped with a magnetic core with neodymium magnets. The core is enclosed inside the rod and can be moved up and down as needed. The outer part of the rod is made of stainless steel (grade 1.4301 / AISI 304 – suitable for food industry use) with a polished surface finish. The handle of the magnetic rod is made of hard plastic for easy handling. The testing rod can be used under thermal conditions up to a maximum of 80 °C. Exceeding this temperature is not recommended, as it may lead to gradual demagnetization.
The magnetic testing rod is easy to use. It is inserted into a container with the mixture and tested for the presence of metallic and magnetic contaminants using circular movements. These contaminants are captured on the lower half of the rod. After removing the rod from the container and pulling the plastic handle, the contaminants easily fall off the surface of the lower half of the rod.
Key features
The magnetic testing rod with a length of 150 mm has a diameter of 26 mm. Inside, there is a neodymium magnet with a pull-off force of 102 N, corresponding to a magnetic strength of 12,400 Gs. The weight is 1.1 kg.
WARNING: The stated pull-off force values of some products were measured under ideal conditions defined by the testing environment. However, these values may vary depending on the specific type of environment, as operating conditions and subsequent wear may affect product performance. Measurements were not performed for all products, and in such cases the values represent only an estimate or an internal auxiliary calculation by the seller. Therefore, the stated values should be considered indicative, and any deviations cannot be considered a defect within the meaning of Section 2095 and Section 2161(1)(a) of the Civil Code. To determine the exact pull-off force value in a specific case, individual measurement is required. If the measured pull-off force values are not sufficient for you because they do not correspond to the stated values, you may use the guaranteed option to return the goods within 30 days under the conditions stated here: https://e-shop.magsy.cz/vraceni-zbozi/ and purchase a stronger magnet. These 30 days are intended specifically for testing the product; after this period, the seller may refuse to accept the return.
Additional parameters
| Category: | Magnetic rods |
|---|---|
| EAN: | 8595133919531 |
| Length of magnetic part: | 150 mm |
| Weight (kg): | 1,1 |
| Magnetic force on the tube: | 12.400 Gs |
| Material: | Stainless steel DIN 1.4301 / AISI 304 / CSN 17240 |
| Breakaway force on the tube: | 102 N |
| Surface treatment: | Polishing, Ra value less than 0,1 µm |
| Magnetic part diameter: | 26 mm |
| STATUS OF PRODUCT: | New |
| Magnet type: | Neodym (NdFeB) |
| Suitable for the food industry: | YES |
